Ultra-Performance Vertical Machining

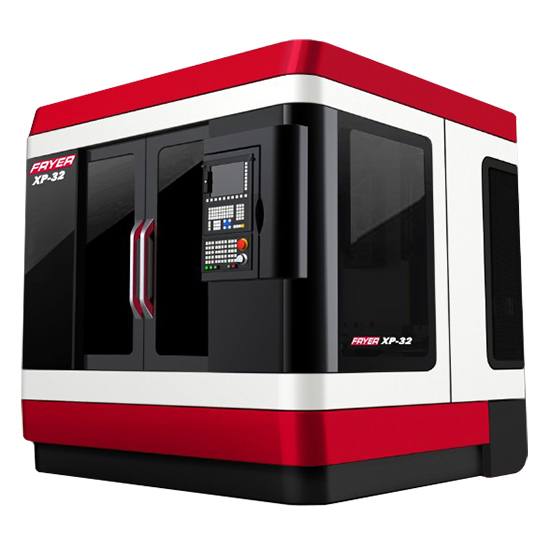

XP-32

XP Series

High Speed Machining Centers

High Spindle Speeds
Super-Fast Rapids
Roller Type Linear Ways
Heavy Duty FEA Designed Castings

XP-24 24" x 18" x 18"		XP-32 32" x 22" x 22"		XP-45 45" x 24" x 25"
REQUEST INFO

Overview

The Fryer XP series feature extra performance for high speed machining. Standard features include a 1.5 second high speed 24 tool ATC, an 15,000 RPM inline spindle, a high torque 30 HP motor and a super-fast 1,900 IPM rapid feedrate. The high tech enclosure combines form and function. Combined with roller type linear ways and heavy duty FEA designed castings, the XP series is the ultimate high speed VMC.

FEATURES

15,000 RPM spindle
1,900 IPM rapids
Roller type linear ways
Big Plus 40 taper spindle
24 tool high speed ATC
Siemens or Fanuc CNC

PRODUCTIVITY

Super fast block processing
500 block look ahead
6 GB storage memory
Adaptive feed control
Coolant thru spindle
Integrated chip management

CNC Control

Overview

The Fryer – Siemens Touch 2200 CNC provides world class technology and ultra-advanced features in an intuitive user interface. This state of the art platform provides the ultimate for 5-axis, high speed machining, horizontal machine and turning applications alike. Fast set-up cycles, one button hot keys and built in probe cycles speed the set-up process. Shop floor programming, G code programming, large program storage and Ethernet connectivity speed the programming process. 3D solid model graphic verification, handwheel run and easy interrupt speed the first article process.

FEATURES

One touch set-up cycles
Shop floor programming system
G code programming editor
Advanced graphic simulation

TECHNOLOGY

Advanced Digital Control System
Regenerative drive technology (saves 40% electric)
Absolute encoders – no homing needed
High accuracy contouring and surfacing

The tool management page stores your tool information in a graphical format. In addition, tools can be given tool numbers or actual names like .500 drill or .375 CBD end mill. Each tool can be managed for wear and switched automatically when the tool run time is reached.

The standard part probe cycles use a simple GUI to make part set-up simple. The cycles include edge find, part skew, pocket, boss and many more. The cycles can also be used to measure the part and display dimensions on the screen, much like a CMM.

The High-Speed Machining option lets you select 3 settings for the velocity, accuracy or surface quality to produce the workpiece at extremely high speed. Includes 500 block look ahead and 1 millisecond block processing.

After the part is programmed it can be simulated to show the operations and tool paths. Simulation will also work with programs brought in from a CAM system that were output in G code. Cycle time is displayed also.
