5-Axis with Tilting Spindle

SX-60

SX Series

5-Axis Simultaneous with Tilting Spindle

+/- 110° tilt head

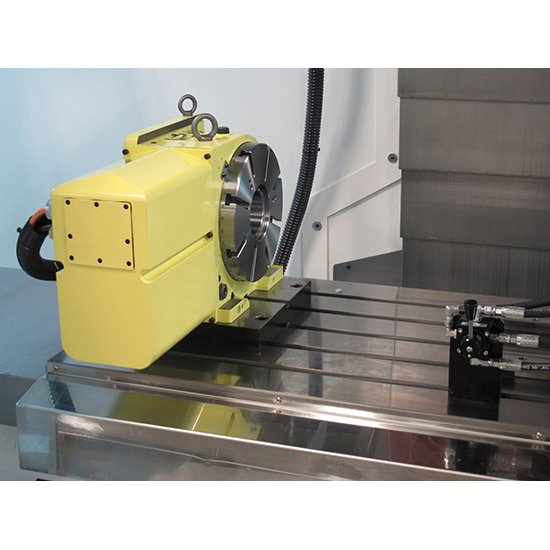

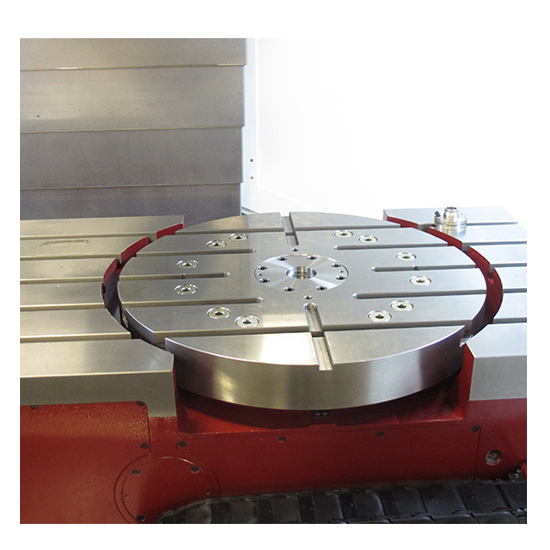

Flush or table mounted rotary table
High torque, high speed spindle
High rigidity for heavy cutting

SX-45 45" x 25" x 25"		SX-60 60” x 30” x 35”		SX-80 80” x 35” x 34”
REQUEST INFO

Overview

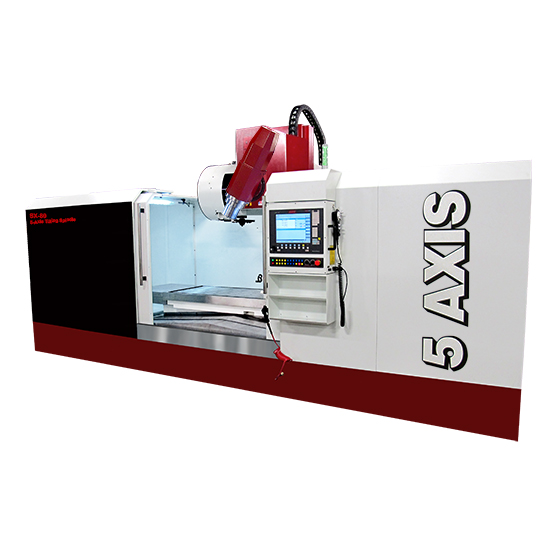

The Fryer SX Series 5 Axis Machining Centers feature a swivel head that moves +/- 110°. The machine has a 40 tool ATC, 18,000 RPM spindle, 40 HP and 1,200 IPM rapids. It is available with a flush mounted 24” or 30” (SX-80) rotary table or a table mounted 12” rotary table. Full 5 axis contouring with either the Siemens SINUMERIK ONE CNC or the Fanuc 31i B5 CNC.

FEATURES

18,000 RPM high torque 40 HP motorized spindle

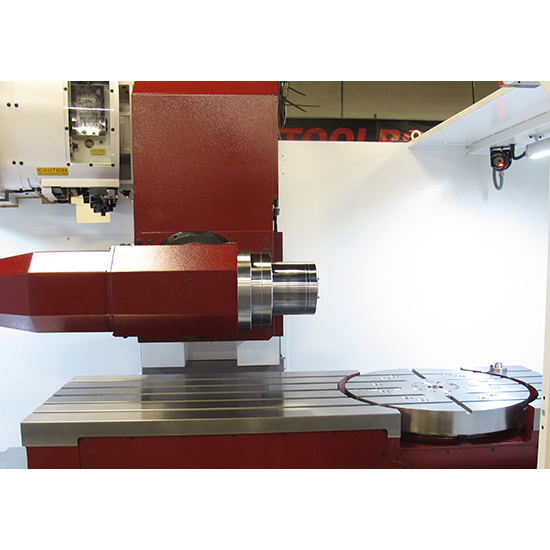

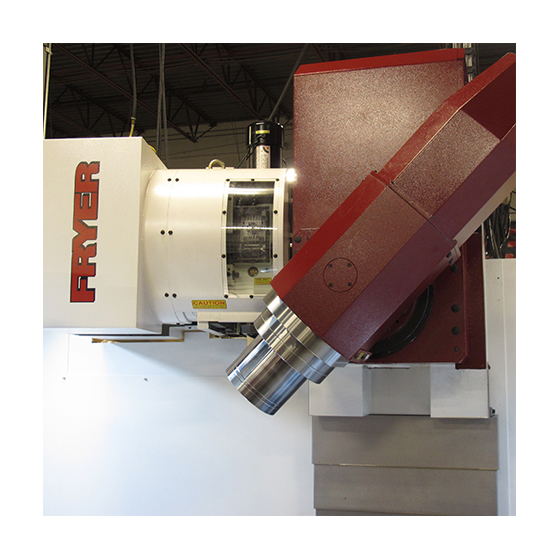

+/- 110° tilt rotation
Roller Cam zero backlash rotary head
CAT-40 Big Plus dual contact taper
40 tool high speed twin arm ATC
Fast 1,200 IPM rapids

PRODUCTIVITY

Use as 3 or 5-axis
Fast set-up cycles
Conversational or G code programming
Perfect for multi-sided work
Siemens SINUMERIK ONE 5-axis CNC
Fanuc 31i B5 5-axis CNC

CNC Control

Overview

The Fryer – Siemens Touch 2400 CNC provides world class technology and ultra-advanced features in an intuitive user interface. This state of the art platform provides the ultimate for 5-axis, high speed machining, horizontal machine and turning applications alike. Fast set-up cycles, one button hot keys and built in probe cycles speed the set-up process. Shop floor programming, G code programming, large program storage and Ethernet connectivity speed the programming process. 3D solid model graphic verification, handwheel run and easy interrupt speed the first article process.

FEATURES

One touch set-up cycles
Shop floor programming system
G code programming editor
Advanced graphic simulation

TECHNOLOGY

Advanced Digital Control System
Regenerative drive technology (saves 40% electric)
Absolute encoders – no homing needed
High accuracy contouring and surfacing

The tool management page stores your tool information in a graphical format. In addition, tools can be given tool numbers or actual names like .500 drill or .375 CBD end mill. Each tool can be managed for wear and switched automatically when the tool run time is reached.

The standard part probe cycles use a simple GUI to make part set-up simple. The cycles include edge find, part skew, pocket, boss and many more. The cycles can also be used to measure the part and display dimensions on the screen, much like a CMM.

The High-Speed Machining option lets you select 3 settings for the velocity, accuracy or surface quality to produce the workpiece at extremely high speed. Includes 500 block look ahead and 1 millisecond block processing.

After the part is programmed it can be simulated to show the operations and tool paths. Simulation will also work with programs brought in from a CAM system that were output in G code. Cycle time is displayed also.
